QS10-S Battery Cable 42 Inch 4AWG: The Ultimate Guide

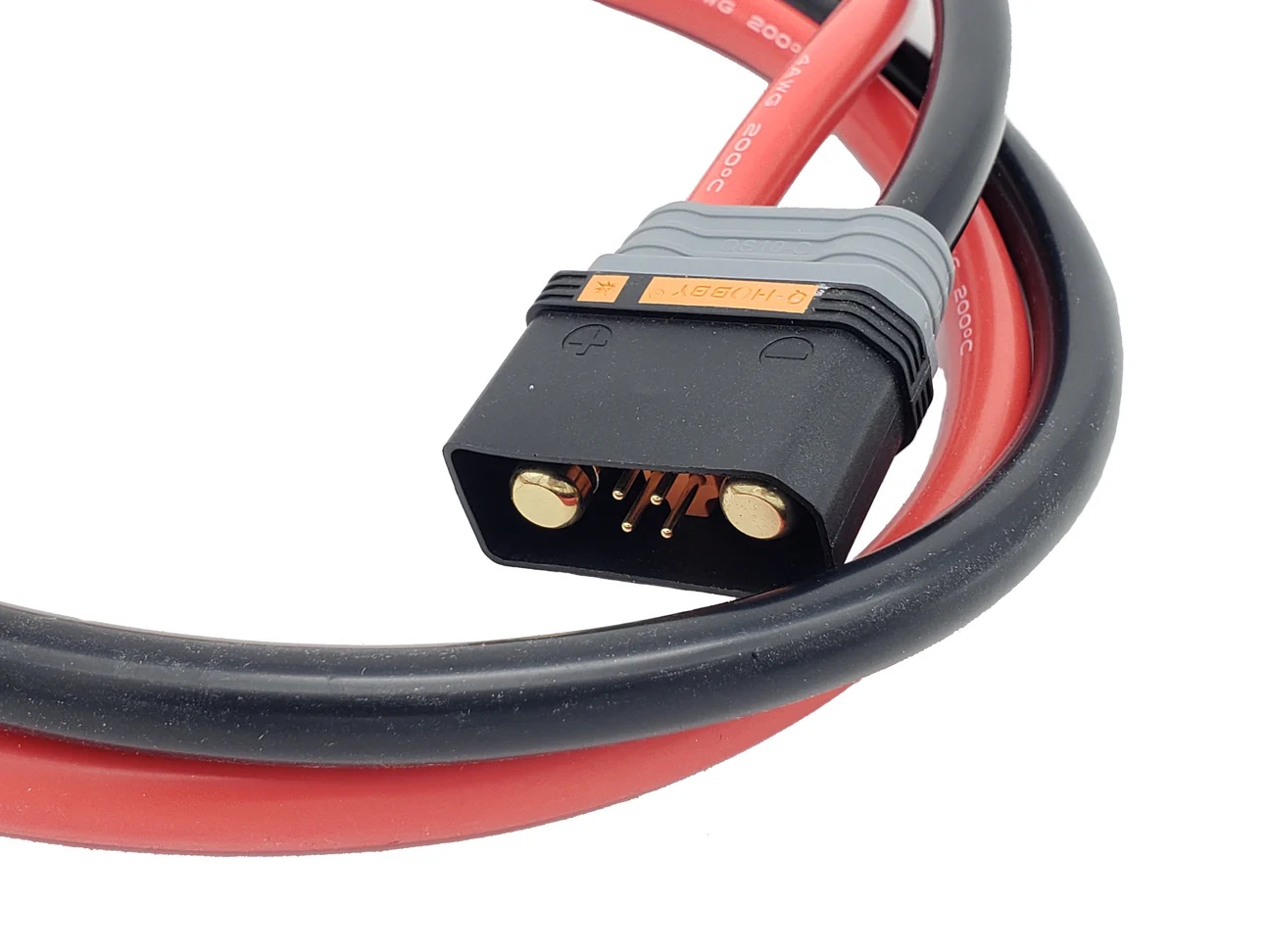

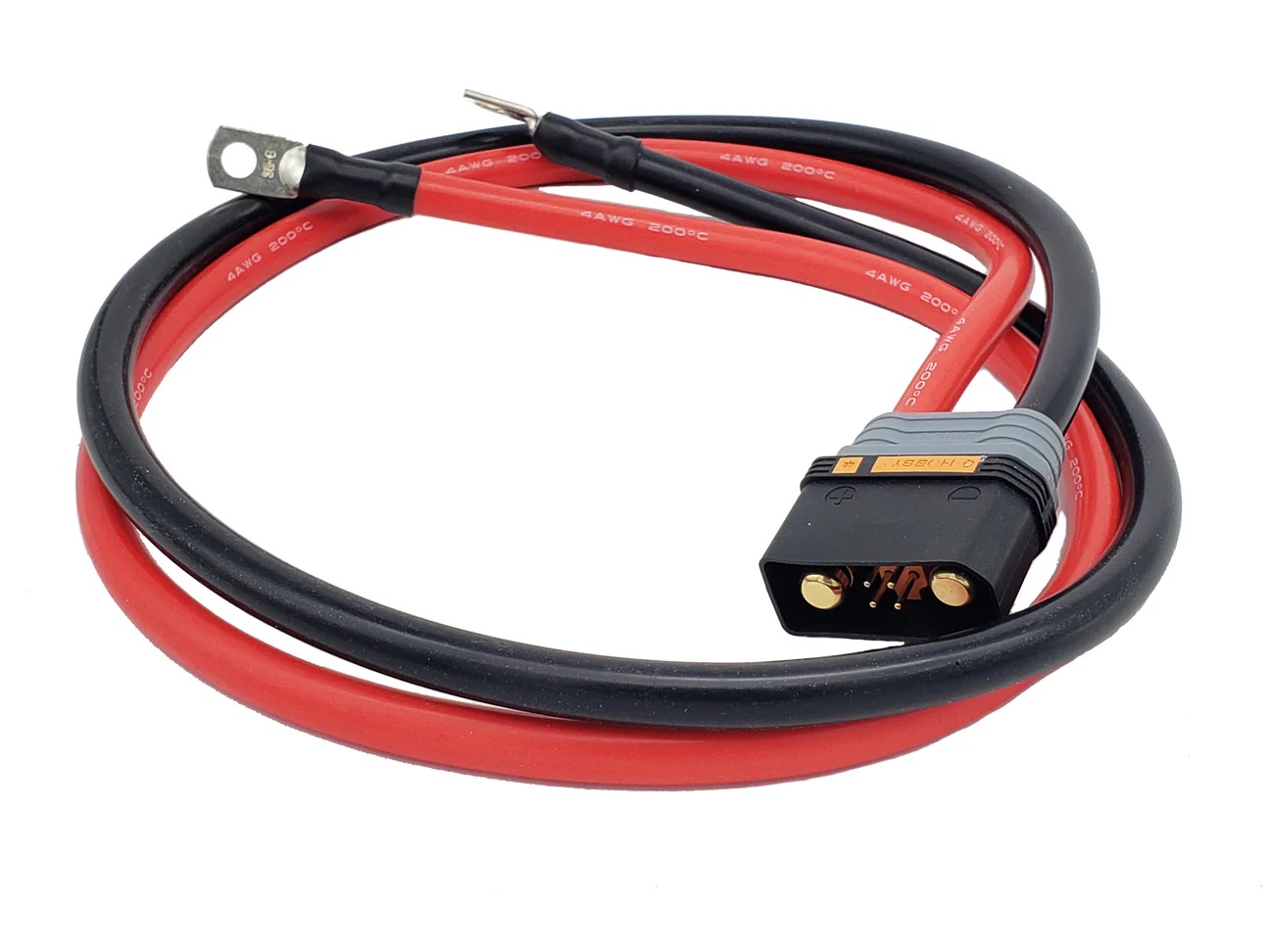

The QS10-S Battery Cable 42 Inch 4AWG is a high-performance power connection solution engineered for high-current electrical systems in RC vehicles, drones, and electric mobility applications. This 42-inch heavy-duty cable is built with 4AWG wire and features the advanced QS10-S anti-spark connector system.

What is QS10-S Technology

The QS10-S series incorporates an integrated anti-spark system that prevents electrical sparks during connection, protecting sensitive electronics and prolonging connector lifespan. Gold-plated brass contacts deliver excellent conductivity with low contact resistance of just 0.51mΩ, ensuring stable power transmission.

Technical Specifications

• Cable Length: 42 inches, ideal for battery-to-ESC connections

• Wire Gauge: 4AWG for optimal current handling

• Current Capacity: 180A continuous, 240A peak

• Voltage Rating: Up to DC 750V

• Temperature Range: -30°C to 150°C

• Durable Housing: Impact-resistant polyamide (PA) construction

Key Benefits

• Anti-Spark Protection: Built-in resistor prevents damaging arcs during connection

• Industrial Durability: UL94V-0 rated housing resists heat and impact

• Easy Installation: Ready-to-use cable eliminates soldering and heat shrink

• Reliable Contact: Gold-plated brass ensures consistent performance
